Horizon Memory Craft 9480QCP

At a glance…

NEW MODEL

Sewing / Quilting
Accurate Stitch Regulator
A.S.R. Ruler Work
11″ Workspace
Retractable Light

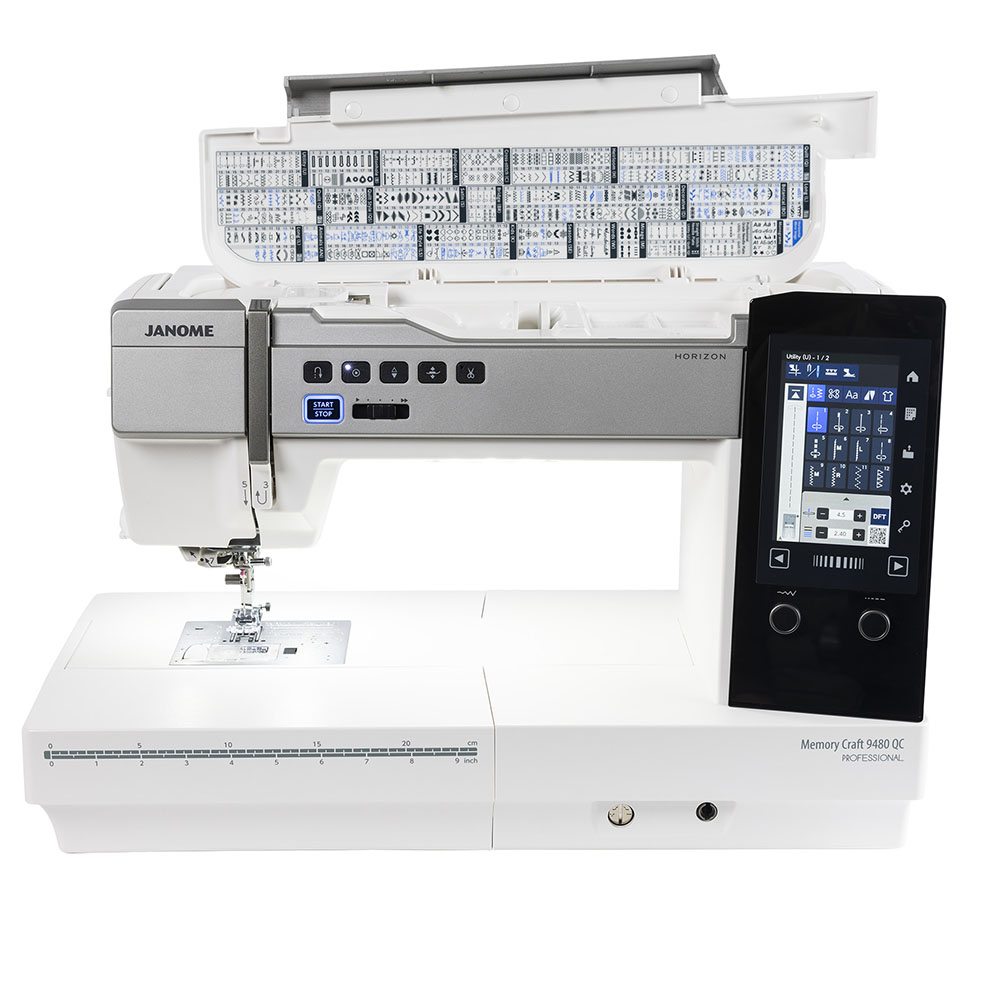

The Horizon Memory Craft 9480QCP is the second model in the Janome range to have A.S.R. Accurate Stitch Regulator. The A.S.R. feet are supplied standard with the machine; using the A.S.R. Ruler Work foot with ruler work templates gives a professional finish to your quilted projects. You can never have enough light, this model gives you plenty with lighting in 4 locations including a retractable light, which lights the needle area, day and night. The large flat high definition colour touch screen is easy to navigate, and to be more user friendly, the screen has been angled towards the user. The 400 built-in stitches are set out in their stitch families, there is a quick reference chart located in the lid of the machine. Customise each stitch including buttonholes then save them as a favourite stitch. Sewing Applications gives you a variety of pre-set stitch functions, ready to sew zips, blind hem, sewing on buttons, quilting, patchwork and lots more. Quilters and designers will appreciate the AcuFeed™ Flex Layered Fabric Feeding System, the Automatic Presser Foot Lift and the Electronic Automatic Tension Control. To personalize your sewing, you can create your own stitches using the Stitch Composer Software (windows only) supplied as a download to machine owners. The Janome AcuSpark2 App is like a digital instruction book with information on feet, stitches & techniques. Use the QR reader in the App to scan the QR code on the machine screen for more information. Available FREE from the App Store or Google Play.

Features Video CLICK HERE

Own this machine already? Register your warranty

Compare

SKU: MC9480QCP Categories: Quilting Machine, Sewing Machine Tags: Accurate stitch regulator, AcuFeed, ASR, AU, customise stitch, floating mode, LCD screen, long arm machine, mirage stitch, NZ, patchwork, pivot, Quilting, retractable sewing light, ruler work, sewing machine

Find a Stockist

PRODUCT INFORMATION

Additional information

Wireless Connectivity	No. However, Janome 'AcuSpark 2' App reads QR Code on machine screen. Download app from Google Play or App Store.
Work Space	280mm or 11 inches
A.S.R.	Janome's Accurate Stitch Regulator, plus there are 4 different ASR feet including ASR Ruler Work foot.
Sewing Speed	up to 1060 stitches per minute
Pivot Function	Yes
Easy Change Needle Plate	Yes
Machine Screen	High-Def Colour FTF LCD Touch Screen
Built-in Stitches	400
Stitch Width	9mm
Buttonholes	11
Stitch Tapering Function	Yes
Ruler Work Mode	Yes, for free motion quilting. Use with Janome's ruler work kit.
Floating Mode	Yes, raises the presser foot slightly above the fabric to easily sew through fabric bulk; stitch fabrics with pile and leave no foot burn and great for piecing curves.
Needle Positions	91
Presser Foot Lift Button	Yes
Foot Pressure	Yes, electronic automatic control
Needle Threader	Yes, Superior Needle Threader V2
Upper Feed Device	AcuFeed Flex (removable dual feed system – twin type & single type)
Lighting	9 white bright LED lights including retractable light
Machine Ports	1 USB port
Standard Sewing Feet	25 including the 4 x A.S.R. Feet
Extra Wide Table	Yes, with twist off adjustable legs.
Built-in Memory	3MB
Machine Size	W535 x H326 x D243mm
Weight	13.7 Kg
Free Arm Length	150mm (5.9") to the right of the needle and 254mm (10") total length
Embossed Measures	Yes, on the sewing bed
Quick Reference Stitch Chart	in lid of machine, plus is a new icon on machine screen to access the built-in stitch chart. Able to select a stitch directly from this stitch chart.
Stitch Length	up to 5mm
Speed Control Slide	Yes
Stitch Elongation	Yes, up to 5 times on satin stitches
Favourite Stitch	Yes, available on all stitches & buttonholes but not including alphabets and created stitches
Mirror Image Stitches	Yes, plus stitches highlighted grey can be horizontally mirror imaged
Startover	Yes, when startover selected, stitch will reset to the beginning.
Bobbin Winder	Yes, wind bobbin without unthreading using extra spool pin
Set Menu	personalize the machine functions via the Set Menu
Fonts in Normal Sew	7 fonts (Block,Script,Broadway including European characters in each, 9mm Capital letters/numbers,Cyrillic,Hiragana & Katakana)
AcuFeed Balance Dial	Yes, when AcuFeed engaged allows you to adjust feed if the fabric is puckering on top or below
Drop Feed	Yes with switch
Superior Plus Feed System	7 piece redesigned feed dogs; no more fabric slipping, puckering or shifting
Needle Plate	has patented needle plate markings for precision sewing with needle drop position, angle marks and sewing guides in front of the sewing foot. This model has 3 different needle plates – Standard, Straight Stitch and Professional Grade.
Thread Cutter	automatic programmable thread cutter; cuts top & bobbin thread at the same time, pulling top thread to underside, consistant cut thread tail of 1cm. Also, standard with this model is the remote thread cutter switch activated by your foot. Remote thread cutter attaches to a base plate with the foot control.
Stop/Start Button	can sew without foot control. Hold in button when starting to sew & machine sews slow, same at end of sewing press & hold button, machine will sew slow. Sewing speed is controlled by speed slide on the front of the machine.
Needle Up/Down Function	you can memorise this function, needle can remain in down position in fabric when stop sewing (default setting) or be programmed to stop in the up position.
Auto Lock-off Stitch button	locks off your stitching at the push of button
Lock Button	a safety function which locks the machine, should be activated when threading, changing the needle or changing sewing foot
Reverse Button	Yes
AcuGuide Cloth Guide	Has a manual cloth guide, best used when the extra wide table is attached to the machine as cloth guide held in position with the extra wide table.
Magnifier	optional, set of 3 AcuView Optic Magnifiers™ (1.2, 1.4, 1.6 lens)
Adjustable Knee Lifter	raises/lowers the sewing foot, allowing the sewist to have both hands available to adjust or move fabric as required.
Variable Zig Zag	free motion stitching using zig zag stitch, stitch width is controlled by the knee lift. Great for thread art.
Upper Thread Sensor	Yes
Bobbin Thread Sensor	Yes
Software	Stitch Composer (Windows only) download
Storage	large accessory box gives you front, rear & under the free arm storage
Carry Handle	long handle slots neatly around the top of machine
Janome Accessory Carrying Case	Has a clear plastic accessory box, separate to the accessory box attached to the front of the machine
Foot Control	Large Style
Internal Frame	rigid die-cast aluminium frame for stable sewing at high speeds
Multi-language	16 languages – English, Japanese, French, Spanish, German, Dutch, Italian, Swedish, Finnish, Russian, Portuguese, Polish, Turkish, Danish, Norwegian & Czech

STANDARD ACCESSORIES

Zigzag Foot A

Rolled Hem Foot (3mm) D

Zipper Foot E

Satin Stitch Foot F

Open Toe Satin Stitch Foot F2

Blind Hemming Foot G

Professional Grade Foot HP

Quilting Bar L

Overedge Foot M

1/4˝ Seam Foot O

1/4˝ Seam Foot without quilting guide O

Darning Foot PD-H

Open-toe Darning Foot PD-H

Free Motion Quilting Closed-toe Foot QC

Free Motion Quilting Open-toe Foot QO

Free Motion Quilting Zigzag Foot QV

Variable Zigzag Foot QZ

Ruler Work Foot QR

A.S.R. USB Cable for Stitch Regulator

ASR-QC Closed-toe Foot

ASR-QO Open-toe Foot

ASR-QV Clear-view Foot

ASR-QR Ruler Work Foot

Automatic Buttonhole Foot R

Stabilizer Plate for B/hole Ft

Button Sewing Foot T

AcuFeed Holder (twin)

AcuFeed Foot AD (twin)

AcuFeed Flex Professional Grade Foot HP2

ZigZag Needle Plate 9mm (on machine)

Straight Stitch Needle Plate

Professional Grade Needle Plate HP

Janome Plastic Bobbins x 5 (1 in machine)

Needle Set

Additional Spool Pin

Screwdriver

Lint Brush

Seam Ripper (buttonhole opener)

Spool Holder (large) x 2 (1 on machine)

Spool Holder (small) x 2

Spool Holder (special) x 2

Button Shank Plate

Touch Panel Stylus

Cloth Guide

Foot Control (large style) + base plate

Remote Thread Cutter

Adjustable Knee Lifter

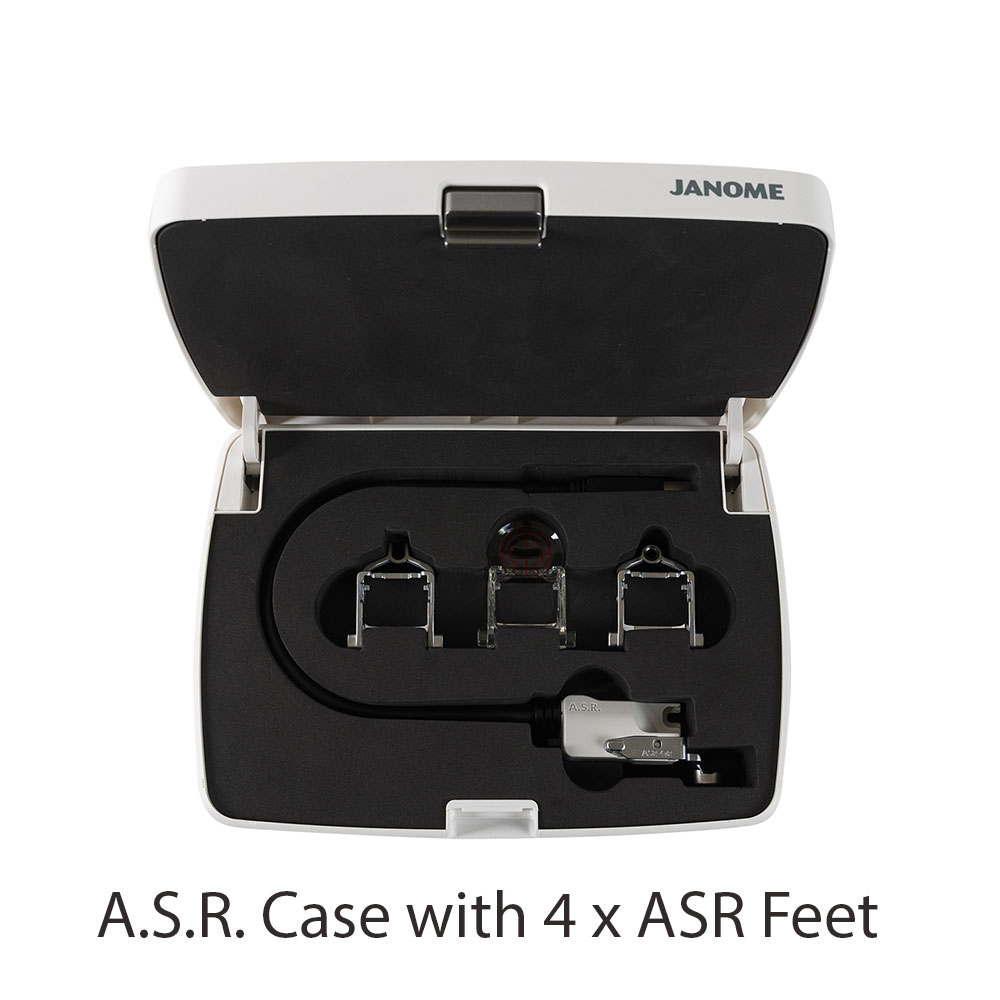

A.S.R. Accessory Case (Janome branded)

Accessory Box (resin) (Janome branded)

Threading Guide Sticker

Power Cable

Instruction Book

Instructional Video (Download)

Stitch Composer Software (Download-Windows only)

Semi-Hard Fabric Machine Cover

Extra Wide Table (Clear) twist-off removable legs

OPTIONAL ACCESSORIES

FEET \| ATTACHMENTS
Part Number	Description
202125004	AcuFeed 1/4 Inch Quilt Piecing Foot OD (Twin)
202103006	AcuFeed Ditch Quilting Foot (Twin) SD
202149004	AcuFeed Open-toe Foot UD (Twin)
202102005	AcuFeed Straight Stitch Foot STD (Twin)
859833006	AcuFeed Holder (Single)
859835101	AcuFeed Foot VD (Single)
859838001	AcuFeed Zipper Foot ED (Single)
202086002	Applique Foot AP
202097006	Beading Foot (narrow groove) L1
202098007	Beading Foot (wide groove) L2
202461005	Bi-Level Foot
202099008	Binder Foot W
202084000	Border Guide Foot FB
202082008	Buttonhole Foot B
202135007	Circular Sewing Attachment
202089005	Clear View Quilting Foot and Guide Set OV
202085001	Cording Foot H
202506003	Cording Foot H2 [9 holes]
202087003	Ditch Quilting Foot S
202100003	Edge Guide Foot SE
202110006	Free-Motion Couching Foot Set FMC
202096005	Gathering Foot V
202418007	HD Roller Foot
202463007	Lap-Seam Foot
202199009	Large Buttonhole Foot & Stabilizer Plate LR
202130002	Optic Magnifiers with 1.2x 1.4x 1.6x Lenses BP
202400006	Optic Magnifier 1.2x Lense only BP
202213000	Pintucking Cord Guides (easy set bobbin models)
202094003	Pintucking Foot (narrow) N2
202093002	Pintucking Foot (wide) N1
202462006	Piping Foot (narrow)
202088004	Piping Foot I
202211008	Quilt Binder Set (easy set bobbin compatible) W1
200444408	Ribbon Sewing Guide (wide)
202090009	Ribbon/Sequin Foot RS
202081007	Rolled Hem Foot (4mm) D2
202080006	Rolled Hem Foot (6mm) D1
202095004	Ruffler RF
202293004	Sliding Guide Foot SG
202083009	Straight Stitch Foot ST
202310008	Taping Guide Foot TG
202091000	Ultra Glide Foot U
202201005	Ultra Glide Needle Plate ＆ Ultra Glide Foot U
859815002	CONCEAL® Zipper Foot Z
200334002	Adjustable Zipper Foot (narrow, 3 needle postions)
BOBBIN CASE \| NEEDLES \| BOBBINS
Part Number	Description
200445007	Bobbin Case (for Free Motion Quilting)
990109000	Janome Needle Size 9 (15×1) Sharp [pack 5]
990111000	Janome Needle Size 11 (15×1) Sharp [pack 5]
990112000	Janome Needle Size 12 (15×1) Sharp [pack 5]
990114000	Janome Needle Size 14 (15×1) Sharp [pack 5]
990116000	Janome Needle Size 16 (15×1) Sharp [pack 5]
990118000	Janome Needle Size 18 (15×1) Sharp [pack 5]
990100000	Janome Needle Mixed (15×1) Sharp [pack 5]
202122001	Janome Purple Tip Needles #14 BP [pack 5]
200346007	Janome Blue Tip Needles #11 BP [pack 5]
990416000	Janome Denim Needles #16 [pack 5]
990500000	Janome Top Stitch Needles #11/14 [mixed pack 5]
990600000	Janome Leather Needles #11/14/16 0mixed pack 5]
820828008	Janome Twin Needle (2mm) sharp
5117075BL	Organ Embroidery Anti Glue Needle – size 11/75 [pack 5] multi-directional stitching
5506000BL	Organ Microtex Needle – size 8/60 x 3 \| size 9/70 x 2 [slim sharp point] [mixed pack 5]
5430000BL	Organ Quilting Needle – size 11/75 x 3 \| size 14/90 x 2 [pack 5]
5102057BL	Organ Stretch Twin Needle – size 11/75 width 4mm
5116000BL	Organ Titanium Needle – size 11/75 x 2 \| size 12/80 x 2 \| size 14/90 x 1 [mixed pack 5]
5102048BL	Organ Twin Needle – size 12/80 width 4mm
5105080BL	Organ Universal Needle – size 12/80 [pack 5]
202010027	Janome Plastic Bobbins x 10 BP
202010038	Janome Plastic Bobbins x 5 BP
THREAD STANDS \| TABLES
Part Number	Description
859429005	Spool Stand (2 threads)
859430009	Spool Stand (5 threads)
494710003	Universal Table Stand excl. plate
494408005	Plate G for universal table stand
494709009	Universal side table stand (no hole)
